UNICON-LF_02

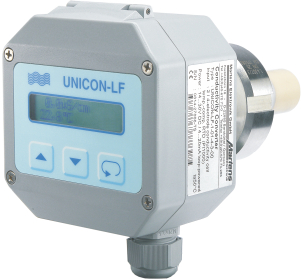

CONDUTTIMETRO CONVERTITORE UNICON-LF

Prezzo su richiesta


Disponibile

Descrizione
Characteristics
The Conductivity Converter UNICON-LF has been designed for the measurement of conductivity, as a degree of the purity or concentration of a liquid. In connection with 4-electrode-conductivity cells a high accuracy and insensitivity of contamination can be achieved. A further advantage is a broad range of application with only one cell.
Only for measurement in ultra-pure water a special 2-electrode conductivity cell must be used.Technical data
Power supply
Loop voltage : UB 14..30 V DC, 2-wire connection
Operating temperature : 0..50 °C
CE- conformity : EN50022, IEC61000-4-3/4/5
Conductivity output
Current : 4..20 mA
Unit : programmable μS/cm; mS/cm; kΩ/cm; MΩ/cm
Decimals : 0..3 digit (unit depending)
Indicating range : 500..9999 Digit (unit and decimals depending)
min./max. MR : 0..5.00 μS/cm bis 0..500.0 mS/cm; 0..0.500 μS/cm / 0..50.0 μS/cm with ultra-pure cell
Temperature comp. : non linear for ultra pure water and natural water or linear programmable from
0.000..8.000 %/°C
-Cell constant : 0.080..9.999
-Accuracy : ±0.5 % of the measuring value, ±2 Digit
Temperature output
Current : 4..20 mA
Burden : RA ≤ (UB-14 V) ÷ 0.02 A
Temperature sensor : RTD Pt100 or Pt1000 acc. to DIN IEC 751
Unit : °C, °F programmable
Measuring range : -40.0..+160.0 °C
Alarm outputs
Transistor : 14..30 V DC, max. 60 mA
Voltage drop : < 2V
MR switch over
Ri : >10 kΩ
MB1 active : U = 0..3 V DC
MB2 active : U = 12..30 V DC
Display : LCD-dot matrix, 3.8mm characters
Range : 2 lines 16 characters each Case : head case / field case
Material : case polyamide with fiber glass PA6-GF/GK 15/15, front foil polyester
Dimensions : 100 x 100 x 60 mm (WxHxD)
SKU: UNICON-LF
